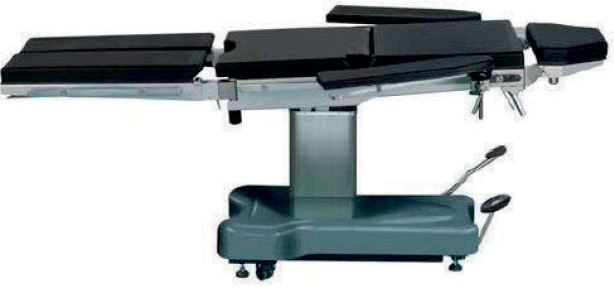

Operating Table

(Electro hydraulic, standard posifion)
• Power Supply Standard configuration
• 220V/50~60Hz
• Available upon special request 110V/50~60Hz
• Power supply is defaulted as standard configuration.
Please make comment on special request.

Features
• Interchangeable head and leg section for easy access of C arm
• Acentric structure, interchangeable head and leg plates, convenient for using X ray and C arm
• Weight capacity 200kg
• AC and DC (optional) power supply Wired remote control with automatic safty locking to prevent mis action
• Front end brake for easy locking and positioning during movement
• Memory foam pads easy to replace and clean Standard Configurations



Sort Order No. Part Descripfion Quanfity Remark

(Electro hydraulic, standard posifion)
• 7BZ-HFSST-400H Main unit 1 set
• SST4EH-10-150 Memory foam pad for Head plate 1 pc
• SST4EH-20-170 Memory foam pad for Back & Seat plate 1 pc
• SST4EH-40-120 Memory foam pad for Leg plate 2 pcs
• SST4E-20-120-00 Body restraint strap 2 pcs
• SSTFJ-20-100 Arm restraint strap 4 pcs
• SSTFJ-30-60 Leg restraint strap 2 pcs
• SSTFJ-100-00 Easy armboard, horizontal adjustment 180°, padded 2 pcs Snap onto side-bar (requires no clamp)

• 7SB-SSTFJ-QMZP L-shaped Anaesthesia Screen (or called Ether Screen), rigid 1 pc Mounting clamp included
• SSTFJ-30-00 Leg Support (or called Knee Crutch), padded 2 pcs Mounting clamps included
• SSTFJ-40-00 Lateral Support (or called Lateral Brace), padded 2 pcs Mounting clamp included
• SSTFJ-50-00 Shoulder support, padded 2 pcs Mounting clamps included
• 7SB-4BKZQ-001 Remote Controller 1 pc
• 1WC-10A250V- AC power cord 1 pc
• 1FS-T3.15A250-001Fuse 3.15A/250 3 pcs
• 7CS-SST4EHES- User manual 1

order now

Operating LIGHT

Surgery lights featuring efficient, green technology Go green with DRE Vision LED surgery lights! Designed for low heat and high efficiency, DRE Vision LED lights consume as little as half the electricity of standard halogen lights — with a virtually cold light output.
• Low heat and high efficiency — half the electric consumption of standard halogen lights
• Long-life LED bulbs
• 4,300° Kelvin color temperature 65,000 lux (6,000 foot candles) central luminance
• Available in a variety of ceiling, wall and portable mounts
• LED bulbs last up to 50,000 hours
• 5-stage dimming and on/off switch controlled from the patented sterilizable handle

Model Configuration
• Dual head ceiling mount
• Single head ceiling mount
• Single Wall mount
• Portable floor model
• Single and dual trolly chuttle track mounting (ceiling tracks sold separately)



Features
1.The adoption of blue theca plating technology enables the Toplite-P surgical light to create a light source that is close to natural light source.
2. It offers a backup bulb system to ensure continu ous operation in case of bulb failure.
3.Shapes of domes are smooth and streamlined, which are easy to clean and meet the requirement of laminar flow purification in operating rooms.

4.Domes with diameters of 70cm and 60cm are optional for choice.
5.The surgical light uses explosion proof and rippled PC plastic dome cover.
6.Single, dual and triple domes are available to be equipped in one ceiling mount lamp.
7.Our surgical light is economically priced while not compromising on performance

order now

Suction Unit

Sturdy cluster free design Stainless steel instrument shelf Stainless steel handles and bottle bump protec tors 2 x 3.5 liter or 2 x 2 liter polycarbonate jars with overflow safety Safety bottle with bacterial filter to protect pump Silent operation, Oil less suction pump Foot switch (optional)

Surgical Suction Unit
The new HOSPIVAC line has been designed for operating theatres for the aspiration of body liquids and for applications in gyneacology and dermatology (liposuction). Main Applications
• Emergency dept.
• Operating Theatre
• General Surgery
• Neurosurgery
• Liposuction
• Endoscopy
• Obstetric
• Gastroenterology

Diathermy Machine

Specifications
Range of Use: May use to various surgical operations of cutting or/and coagulation to organism tissue. Working Modes: Pure cut, Blend 1,Blend 2, Desiccate, Fulgurate, Spray and Bipolar.

Surgical Diathermy

Sturdy cluster free design Stainless steel instrument shelf Stainless steel handles and bottle bump protec tors 2 x 3.5 liter or 2 x 2 liter polycarbonate jars with overflow safety Safety bottle with bacterial filter to protect pump Silent operation, Oil less suction pump Foot switch (optional)

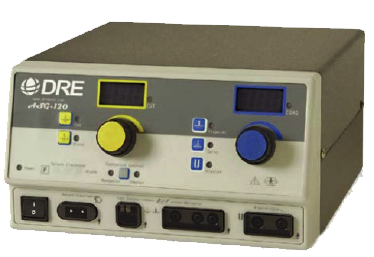

High Frequency Electrosurgical Unit Aj-s900b
The ASG-120 is a multipurpose electrosurgical generator for use in the modern physician’s office and surgi-center. It features both monopolar and bipolafunctions to satisfy all of your surgical demands with safety, flexibility,reliability, and convenience.
The ASG-120 features Cut, Blend, Coagulation, Fulgura- tion, and Bipolar modes. It incorporates automatic safety features like self-test circuits, audible tones, discreet outputs, isolated circuitry, and Bovie neutral electrode monitoring.

Output Power
• Cut 120 W @ 500 K
• Blend 90 W @ 800 K
• Pinpoint 80 W @ 1000 K
• Spray 40 W @ 1000 K
• Bipolar 30 W @ 200 K
• Duty Cycle 10 S / 30 S
• Output Frequency 490 kHz ± 5 Input Current 4.5 A ~
• Line Voltage 100 – 240 V ~ Line Frequency 50-60 Hz

General
• Classification Class 1 Equipment, IEC 60601-1
• Type BF (Defibrillator Proof)
• Spillage Protection Drip Proof (IEC 60601-2-2)
• Output Configuration Isolated (RF Floating) Cooling Natural Convection, No Fan Dimensions and Weight • Width 26 cm (10.25 in.)
• Height 15.2 cm (6.00 in.)
• Depth 30.5 cm (12.00 in.) Weight < 6.5 kg (< 14 lbs)
